Sheet Terminals
CABLE TERMINATION

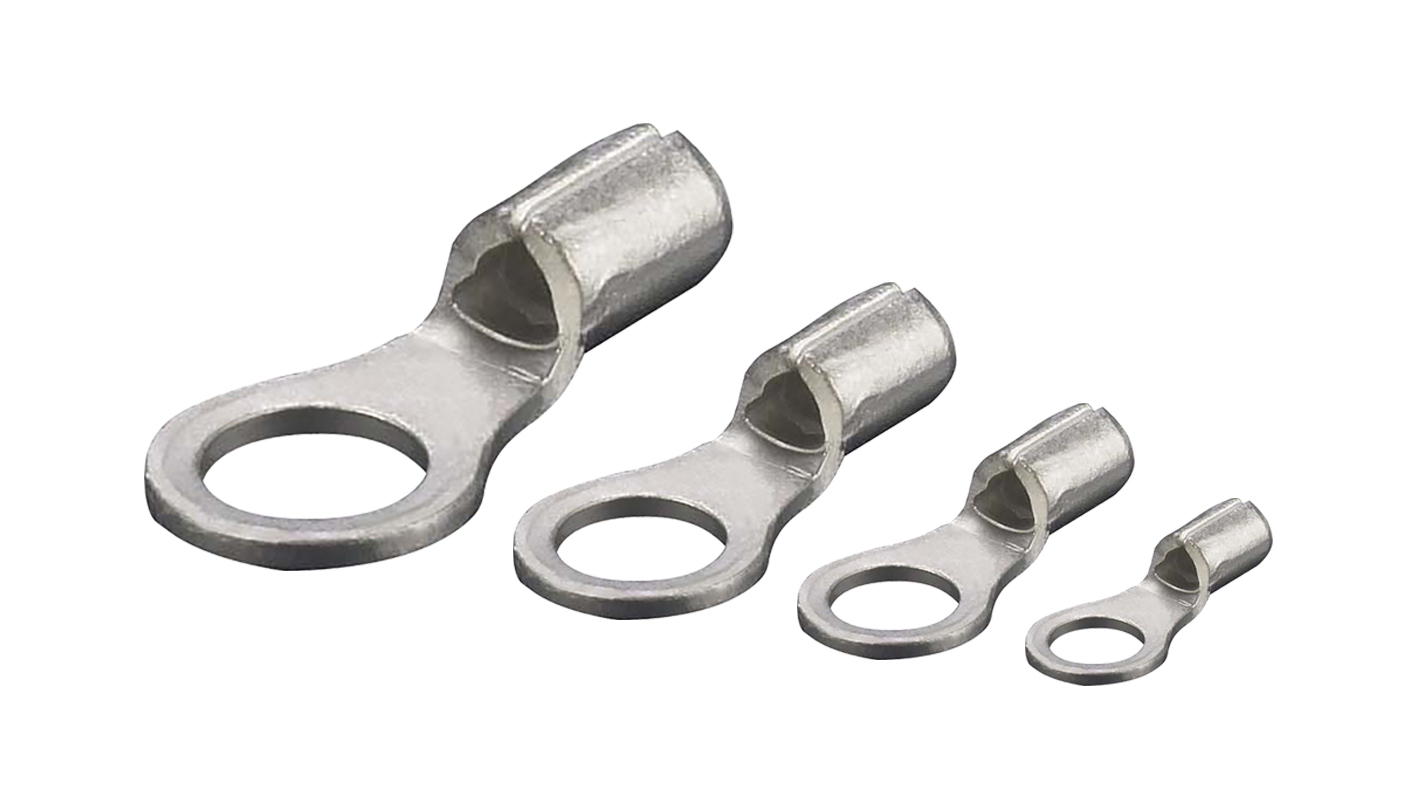

Ring Sheet Terminals
Brywood Connectors’ Sheet Terminals provide a robust
and efficient solution for creating strong electrical
connections to busbars, panels, and switchgear
assemblies. Manufactured from high-conductivity
copper and available in bare or tinned finishes, these
terminals are designed for reliable performance in
demanding electrical installations.
Manufactured from high-conductivity copper and tin-plated for enhanced corrosion resistance, these splices
are designed to ensure a secure, long-lasting connection with excellent electrical performance. Ideal for cable
repair, extension, or inline joining applications, our butt splices are available in a full range of sizes to suit various
conductor types and cross-sections. Each splice is clearly marked with crimping locations for ease of installation
and consistent results.
| Materials | Terminal body: Copper. Plating: Bright electro tin. |
| Features | Brazed seam. Excellent corrosion resistance and conductivity. Commonly used with cables carrying higher currents. |
Ring Sheet Terminals – Heavy Duty
| Part Code | Product Details |
| BR10-6 | Open End Terminal 10-6 |
| BR10-8 | Open End Terminal 10-8 |
| BR10-10 | Open End Terminal 10-10 |
| BR16-6 | Open End Terminal 16-6 |
| BR16-8 | Open End Terminal 16-8 |
| BR16-10 | Open End Terminal 16-10 |
| BR16-12 | Open End Terminal 16-12 |
| BR25-6 | Open End Terminal 25-6 |
| BR25-8 | Open End Terminal 25-8 |
| BR25-10 | Open End Terminal 25-10 |
| BR25-12 | Open End Terminal 25-12 |
| BR35-6 | Open End Terminal 35-6 |
| BR35-8 | Open End Terminal 35-8 |
| BR35-10 | Open End Terminal 35-10 |
| BR35-12 | Open End Terminal 35-12 |
| BR50-8 | Open End Terminal 50-8 |
Ring Sheet Terminals – Heavy Duty
| Part Code | Product Details |
| BR50-10 | Open End Terminal 50-10 |
| BR50-12 | Open End Terminal 50-12 |
| BR70-8 | Open End Terminal 70-8 |
| BR70-10 | Open End Terminal 70-10 |
| BR70-12 | Open End Terminal 70-12 |
| BR95-10 | Open End Terminal 95-10 |
| BR95-12 | Open End Terminal 95-12 |
| BR95-14 | Open End Terminal 95-14 |
| BR120-8 | Open End Terminal 120-8 |
| BR120-10 | Open End Terminal 120-10 |
| BR120-12 | Open End Terminal 120-12 |
| BR120-14 | Open End Terminal 120-14 |
| BR150-8 | Open End Terminal 150-8 |
| BR150-10 | Open End Terminal 150-10 |
| BR150-12 | Open End Terminal 150-12 |
| BR150-14 | Open End Terminal 150-14 |
