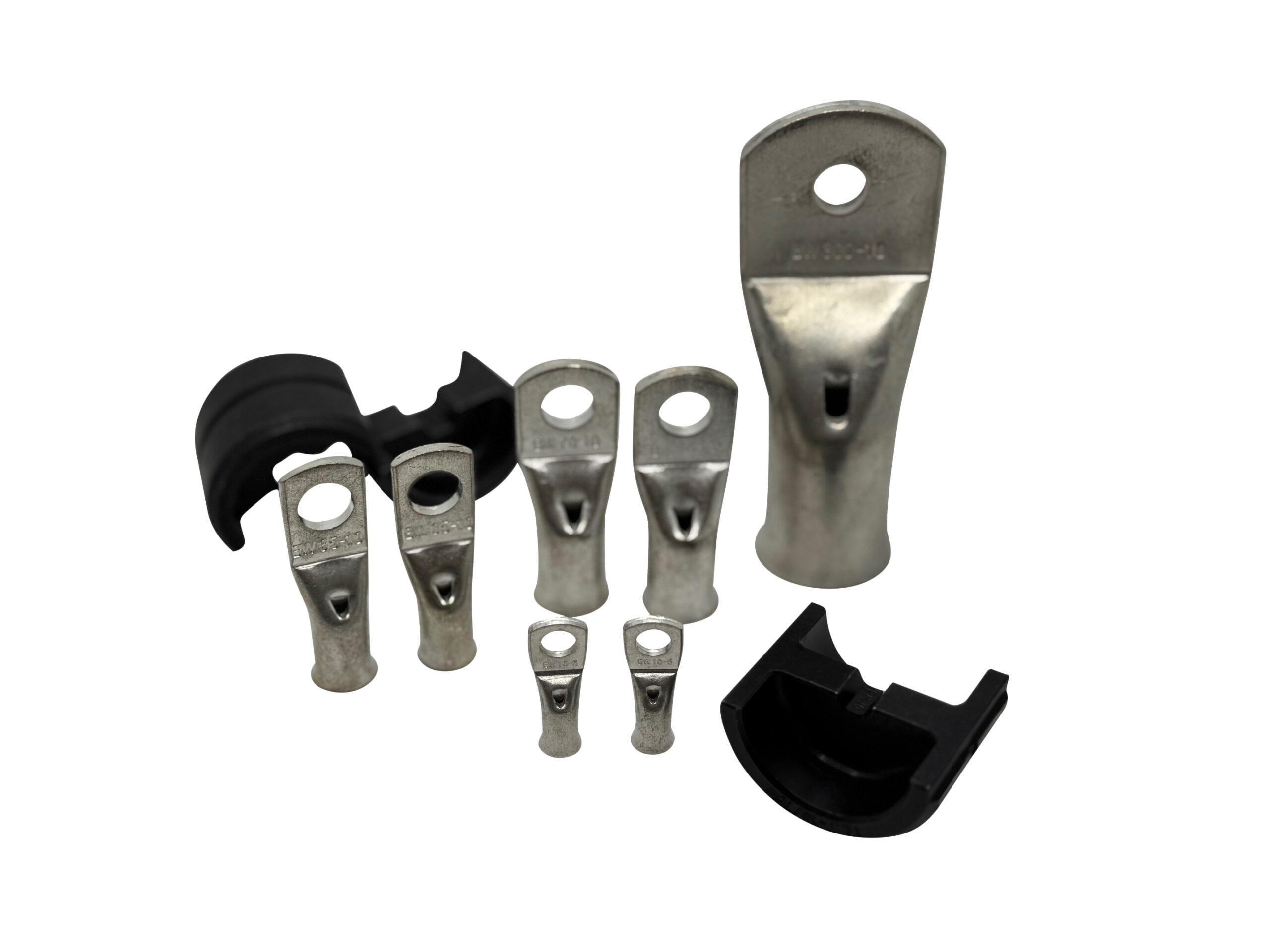

Trade Copper Tube Terminals
CABLE TERMINATION

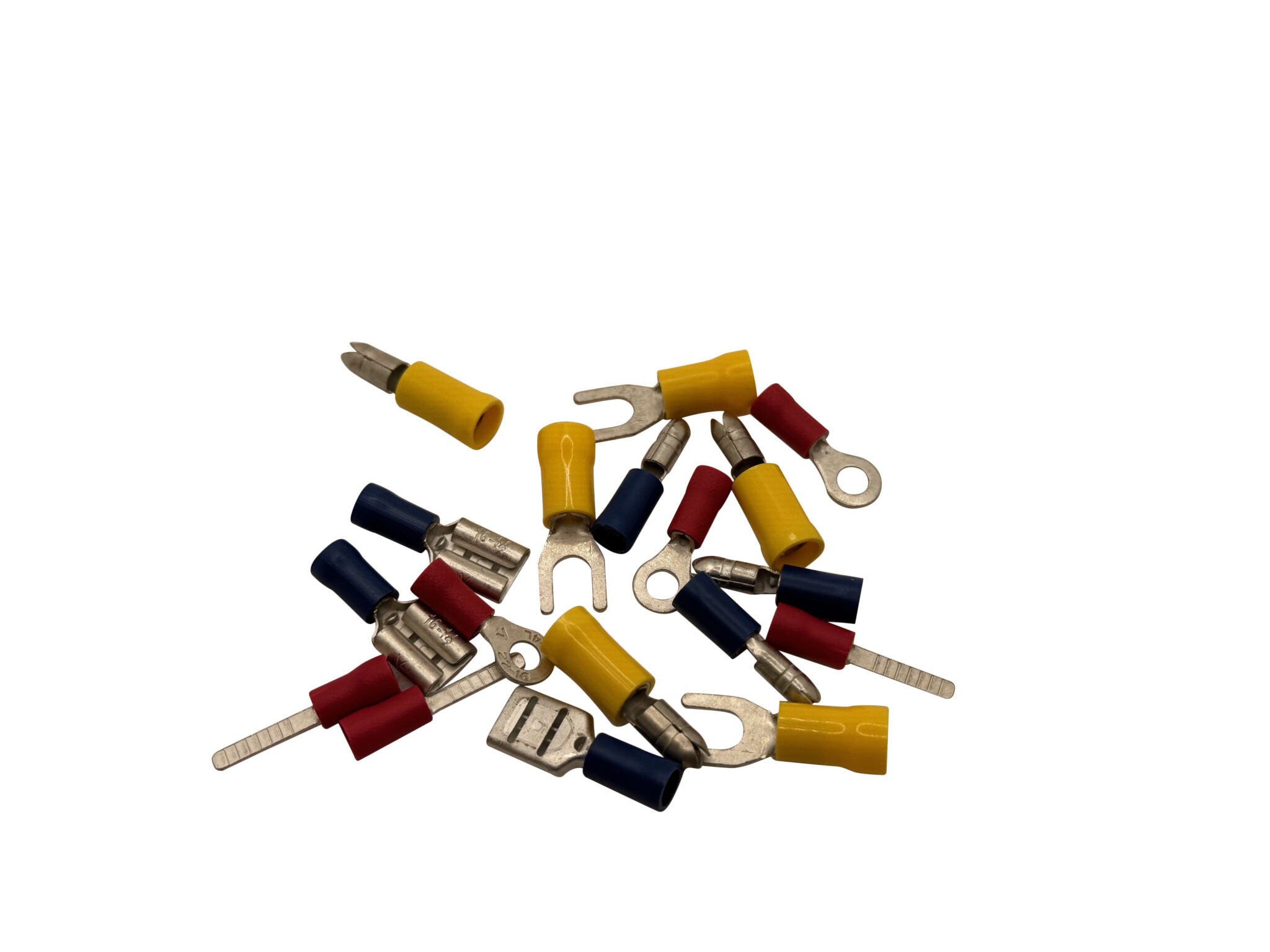

Pre-Insulated Crimps
Brywood Connectors’ Pre-Insulated Crimp Range
offers a comprehensive selection of connectors
designed to ensure secure, insulated, and reliable
terminations in a wide range of electrical applications.
Each connector is manufactured with a high-quality
insulation sleeve that provides protection against
environmental factors, including moisture, dirt, and
abrasion, while ensuring a strong electrical
connection.
Perfect for use in industrial, commercial, and residential installations, the pre-insulated design reduces the risk of
short circuits and accidental contact with live components. Available in a variety of sizes and styles, Brywood’s
Pre-Insulated Crimp Connectors are a trusted choice for quick, efficient, and safe electrical terminations.
| Materials | Insulation: Vinyl. Terminal Body: Copper. Plating: Tin. |
| Operating Temperature: | -100C to + 750C. |
| Features | Max voltage rating: 600V Max. current rating: Red – 19A, Blue – 27A, Yellow – 48A Flared barrel for easy wire insertion Low insertion force and easy crimping whilst ensuring secure termination Long-term performance, easy installation, and a low installed cost NOTE: See table on next page to determine the products holding a UL Certificate |
Fully Insulated Female Push-On Terminals
| Part Code | Product Details |
| R-F-PO2.8-FI | Red Female Spade 2.8mm F/I terminals |
| R-F-PO4.8-FI | Red Female Spade 4.8mm F/I terminals |
| R-F-PO6.3-FI | Red Female Spade 6.3mm F/I terminals |
| B-F-PO4.8-FI | Blue Female Spade 4.8mm F/I terminals |
| B-F-PO6.3-FI | Blue Female Spade 6.3mm F/I terminals |
| Y-F-PO6.3-FI | Yellow Female Spade 6.3mm F/I terminals |
| Y-F-PO9.5-FI | Yellow Female Spade 9.5mm F/I terminals |
Half Insulated Female Push-On Terminals
| Part Code | Product Details |
| R-F-PO2.8 | Red Female Spade 2.8mm terminals |
| R-F-PO4.8 | Red Female Spade 4.8mm terminals |
| R-F-PO6.3 | Red Female Spade 6.3mm terminals |
| B-F-PO4.8 | Blue Female Spade 4.8mm terminals |
| B-F-PO6.3 | Blue Female Spade 6.3mm terminals |
| Y-F-PO6.3 | Yellow Female Spade 6.3mm terminals |
| Y-F-PO9.5 | Yellow Female Spade 9.5mm terminals |
Piggy Back and Male Push On Terminals
| Part Code | Product Details |
| R-PB-PO6.3 | Red Piggy-back 6.3mm terminals |
| B-PB-PO6.3 | Blue Piggy-back 6.3mm terminals |
| Y-PB-PO6.3 | Yellow Piggy-back 6.3mm terminals |
| R-M-PO6.3 | Red Tab (male) 6.3mm terminals |
| B-M-PO6.3 | Blue Tab (male) 6.3mm terminals |
| Y-M-PO6.3 | Yellow Tab (male) 6.3mm terminals |
Male and Female Bullett Terminals
| Part Code | Product Details |
| R-M-BUL | Red Bullet 4.0mm terminals |
| B-M-BUL | Blue Bullet 5.0mmterminals |
| Y-B-BUL | Yellow Bullet 5.0mm terminals |
| R-F-BUL | Red Bullet Receptable 4.0mm terminals |
| B-F-BUL | Blue Bullet Receptable 5.0mm terminals |
| Y-F-BUL | Yellow Bullet Receptacle 5.0mm terminals |
Butt Connector and Flag Terminals
| Part Code | Product Details |
| R-BT | Red Butt Connector 3.3mm terminals |
| B-BT | Blue Butt Connector 4.0mm terminals |
| Y-BT | Yellow Butt Connector 5.5mm terminals |
| R-FLAG | Red Flag 6.3mm terminals |
| B-FLAG | Blue Flag 6.3mm terminals |
Ring Terminals
| Part Code | Product Details |
| R-RG3.2 | Red Ring 3.2mm (6BA) terminals |
| R-RG3.7 | Red Ring 3.7mm (4BA) terminals |
| R-RG4 | Red Ring 4.3mm (3BA) terminals |
| R-RG5 | Red Ring 5.3mm (2BA) terminals |
| R-RG6 | Red Ring 6.4mm (OBA) terminals |
| R-RG8 | Red Ring 8.4mm (5/16) terminals |
| R-RG10 | Red Ring 10.5mm (3/8) terminals |
| R-RG13 | Red Ring 13.0mm (1/2) terminals |
| B-RG3.2 | Blue Ring 3.2mm (6BA) terminals |
| B-RG3.7 | Blue Ring 3.7mm (4BA) terminals |
| B-RG4 | Blue Ring 4.3mm (3BA) terminals |
| B-RG5 | Blue Ring 5.3mm (2BA) terminals |
| B-RG6 | Blue Ring 6.4mm (OBA) terminals |
| B-RG8 | Blue Ring 8.4mm (5/16) terminals |
| B-RG10 | Blue Ring 10.5mm (3/8) terminals |
| B-RG13 | Blue Ring 13.0mm (1/2) terminals |
| Y-RG4 | Yellow Ring 4.3mm (3BA) terminals |
| Y-RG5 | Yellow Ring 5.3mm (2BA) terminals |
| Y-RG6 | Yellow Ring 6.4mm (OBA) terminals |
| Y-RG8 | Yellow Ring 8.4mm (5/16) terminals |
| Y-RG10 | Yellow Ring 10.5mm (3/8) terminals |
| Y-RG13 | Yellow Ring 13.0mm (1/2) terminals |
Blade Terminals
| Part Code | Product Details |
| R-BL10 | Red Blade 10 x 2.3mm terminals |
| R-BL18 | Red Blade 18 x 2.3mm terminals |
| R-BL9 | Red Blade 9 x 2.8mm terminals |
| R-BL14 | Red Blade 14 x 3.0mm terminals |
| B-BL18 | Blue Blade 18 x 2.3mm terminals |
| B-BL9 | Blue Blade 9 x 2.3mm terminals |
| Y-BL10 | Yellow Blade 10 x 2.8mm terminals |
| Y-BL18 | Yellow Blade 18 x 4.5mm terminals |
Fork Terminals
| Part Code | Product Details |
| R-FK3.2 | Red Fork 3.2mm (6BA) terminals |
| R-FK3.7 | Red Fork 3.7mm (4BA) terminals |
| R-FK4 | Red Fork 4.3mm (3BA) terminals |
| R-FK5 | Red Fork 5.3mm (2BA) terminals |
| R-FK6 | Red Fork 6.4mm (OBA) terminals |
| B-FK3.2 | Blue Fork 3.2mm (6BA) terminals |
| B-FK3.7 | Blue Fork 3.7mm (4BA) terminals |
| B-FK4 | Blue Fork 4.3mm (3BA) terminals |
| B-FK5 | Blue Fork 5.3mm (2BA) terminals |
| B-FK6 | Blue Fork 6.4mm (OBA) terminals |
| Y-FK3.7 | Yellow Fork 3.7mm (4BA) terminals |
| Y-FK4 | Yellow Fork 4.3mm (3BA) terminals |
| Y-FK5 | Yellow Fork 5.3mm (2BA) terminals |
| Y-FK6 | Yellow Fork 6.4mm(OBA) terminals |
Lipped Blade Terminals
| Part Code | Product Details |
| R-BLH4.6 | Red Lipped Blade 3.0mm Terminal |
| R-BLH4.6 | Red Lipped Blade 4.6mm Terminal |
| B-BLH3 | Blue Lipped Blade 3.0mm Terminal |
| B-BLH4.6 | Blue Lipped Blade 4.6mm Terminal |
| Y-BLH4.6 | Yellow Lipped Blade 4.6mm Terminal |
Pin Terminals
| Part Code | Product Details |
| R-PN9 | Red Pin 9.0mm terminals |
| R-PN12 | Red Pin 12.0mm terminals |
| B-PN9 | Blue Pin 9.0mm terminals |
| B-PN12 | Blue Pin 12.0mm terminals |
| Y-PN14 | Yellow Pin 14.0mm terminals |
