Cord Ends
CABLE TERMINATION
Cord End Terminals
Brywood Connectors’ Ferrule Termination Range
provides a reliable and efficient solution for
terminating stranded wire conductors. Designed
to ensure secure, neat, and long-lasting electrical
connections, these ferrules are made from
high-quality copper and are available in both
single and twin-entry designs.
The range features a range of sizes to accommodate different wire gauges, offering consistent crimping
performance and preventing wire fraying. Ideal for industrial, electrical, and control panel applications, Brywood’s
Ferrule Terminations are perfect for providing a professional finish, enhancing conductivity, and ensuring safety
in wiring systems.
| Materials | Conductor: Copper. Insulation: Nylon. Plating: Tin. |
| Operating Temperature: | -400C to + 1050C. |
| Features | Max. voltage rating: QOOV. Flared barrel for easy wire insertion. (A suffix on Item No. denotes French type colour coding system) (B/D/E suffix on Item No. denotes German type colour coding system) |

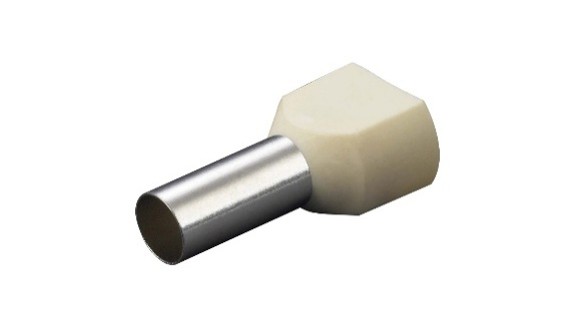

Cord End Twin Wire Terminals
| Part Code | Product Details |
| CE0.5-TW | TWIN Cord Ends 0.5mm² x 8.0mm White |
| CE0.7-TW | TWIN Cord Ends 0.75mm² x 8.0mm Grey |
| CE1-TW | TWIN Cord Ends 1.0mm² x 8.0mm Red |
| CE1.5-TW | TWIN Cord Ends 1.5mm² x 8.0mm Black |
| CE2.5-TW | TWIN Cord Ends 2.5mm² x 10.0mm Blue |
| CE4-TW | TWIN Cord Ends 4.0mm² x 12.0mm Grey |
| CE6-TW | TWIN Cord Ends 6.0mm² x 14.0mm Yellow |
| CE10-TW | TWIN Cord Ends 10.0mm² x 14.0mm Red |
| CE16-TW | TWIN Cord Ends 16.0mm² x 14.0mm Blue |

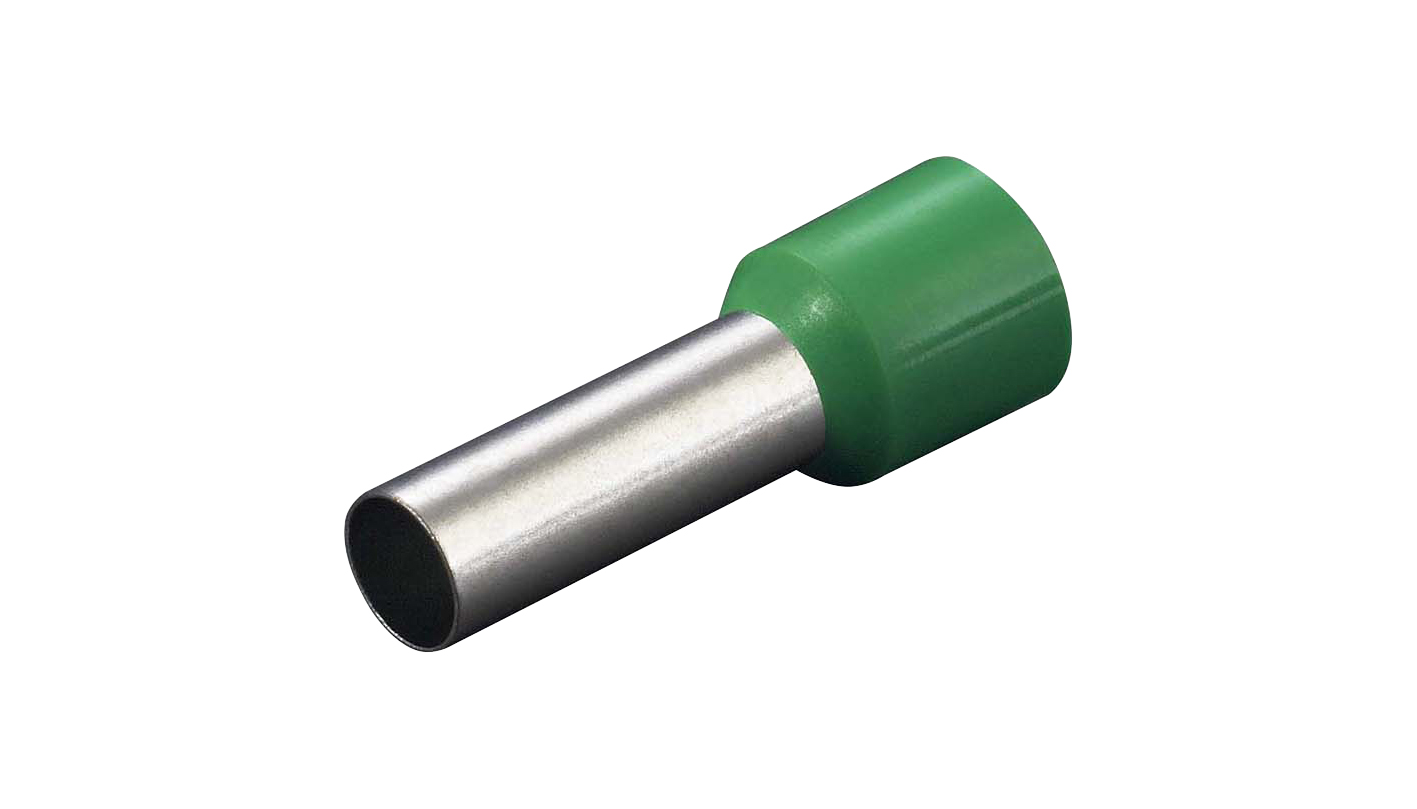

Cord End Single Wire Terminals
– Bootlace Ferrules
| Part Code | Product Details |
| CEO.25F | Cord Ends 0.25mm² x 6.5mm Violet |
| CEO.25G | Cord Ends 0.25mm² x 6.5mm Light Blue |
| CEO.5F | Cord Ends 0.5mm² x 8.0mm White |
| CEO.5G | Cord Ends 0.5mm² x 8.0mm Orange |
| CEO.75F | Cord Ends 0.75mm² x 8.0mm Blue |
| CEO.75G | Cord Ends 0.75mm² x 8.0mm White |
| CE1.OF | Cord Ends 1.0mm² x 8.0mm Red |
| CE1.0G | Cord Ends 1.0mm² x 8.0mm Yellow |
| CE1.5F | Cord Ends 1.5mm² x 8.0mm Black |
| CE1.5G | Cord Ends 1.5mm² x 8.0mm Red |
| CE2.5F | Cord Ends 2.5mm² x 8.0mm Grey |
| CE2.5G | Cord Ends 2.5mm² x 8.0mm Blue |
| CE4F | Cord Ends 4.0mm² x 9.0mm Orange |
| CE4G | Cord Ends 4.0mm² x 9.0mm Grey |
| CE6F | Cord Ends 6.0mm² x 12.0mm Green |
| CE6G | Cord Ends 6.0mm² x 12.0mm Black |
| CE1 OF | Cord Ends 10.0mm² x 12.0mm Brown |
| CE10C | Cord Ends 10.0mm2 x 12.0mm Ivory |
| CE16F | Cord Ends 16.0mm2 x 12.0mm Ivory |
| CE16G | Cord Ends 16.0mm² x 12.0mm Green |
| CE25F | Cord Ends 25.0mm² x 16.0mm Black |
| CE25G | Cord Ends 25.0mm² x 16.0mm Brown |
| CE35F | Cord Ends 35.0mm² x 16.0mm Red |
| CE35G | Cord Ends 35.0mm² x 16.0mm Beige |

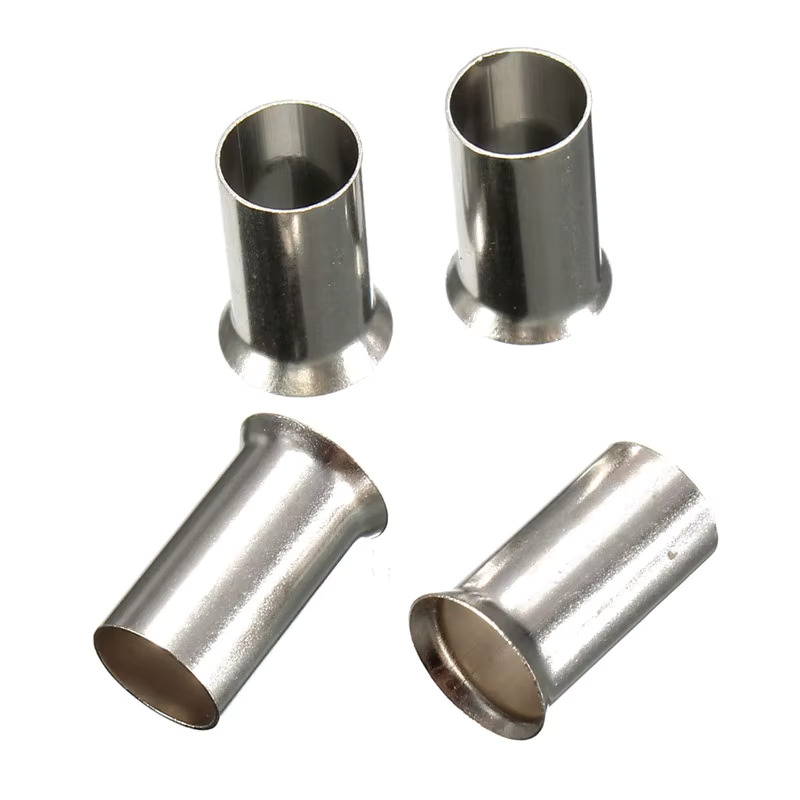

Cord End Un-Insulated
Terminals
| Part Code | Product Details |
| NI-CEO.5-6 | Un-Insulated Cord End 0.5mm x 6mm |
| NI-CE0.75-6 | Un-Insulated Cord End 0.75mm x 6mm |
| NI-CE0.75-10 | Un-Insulated Cord End 0.75mm x 10mm |
| NI-CE1-6 | Un-Insulated Cord End 1.0mm x 6mm |
| NI-CE1-10 | Un-Insulated Cord End 1.0mm -10mm |
| NI-CE1.5-7 | Un-Insulated Cord End 1.5mm x 7mm |
| NI-CE1.5-10 | Un-Insulated Cord End 1.5mm x 10mm |
| NI-CE2.5-7 | Un-Insulated Cord End 2.5mm x 7mm |
| NI-CE2.5-12 | Un-Insulated Cord End 2.5mm x 12mm |
| NI-CE4-10 U | Un-Insulated Cord End 4.0mm x 10mm |
| NI-CE4-12 U | Un-Insulated Cord End 4.0mm x 12mm |
| NI-CE6-12 U | Un-Insulated Cord End 6.0mm x 12mm |
| NI-CE6-15 U | Un-Insulated Cord End 6.0mm x 15mm |
| NI-CE10-12 | Un-Insulated Cord End 10mm x 12mm |
| NI-CE10-18 | Un-Insulated Cord End 10mm x 18mm |
| NI-CE16-12 | Un-Insulated Cord End 16mm x 12mm |
| NI-CE25-15 | Un-Insulated Cord End 25mm x 15mm |
| NI-CE35-18 | Un-Insulated Cord End 35mm x 18mm |
| NI-CE70-32 | Un-Insulated Cord End 70mm x 32mm |
| NI-CE95-32 | Un-Insulated Cord End 95mm x 32mm |
| NI-CE120-32 | Un-Insulated Cord End 120mm x 32mm |
